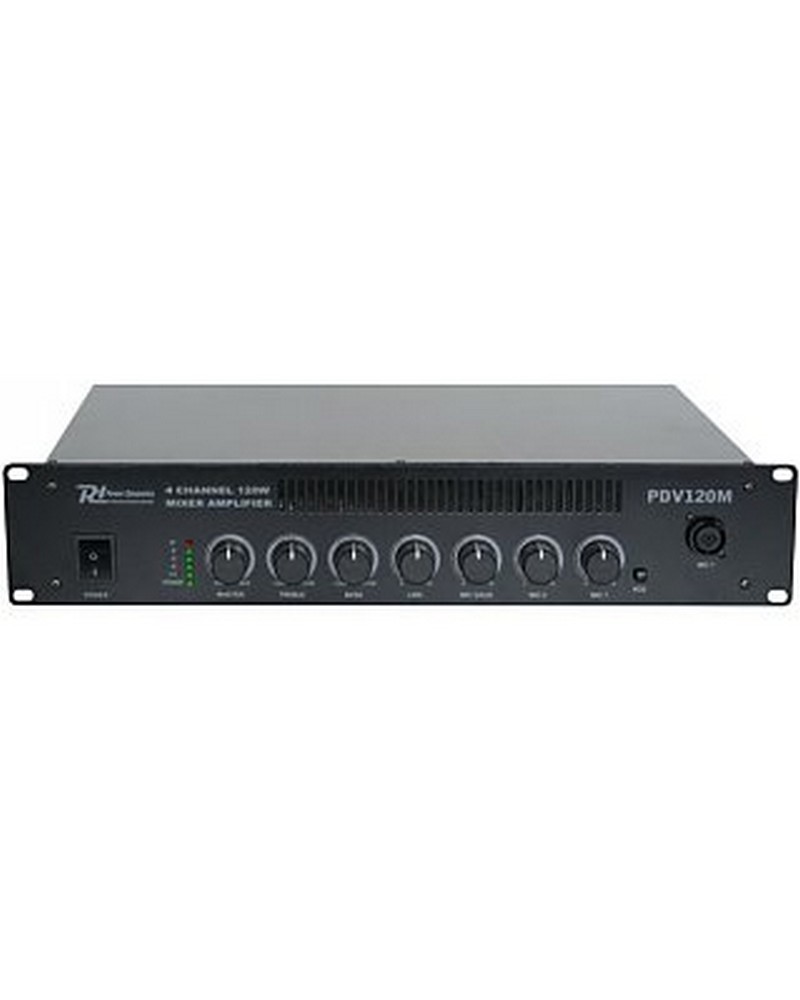

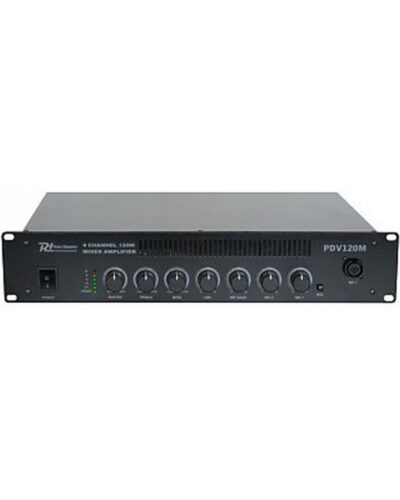

A 4-channel mixer and amplifier with 120W RMS output power featuring three microphone inputs and a line input. This Power Dynamics device has switchable VOX control and balanced XLR microphone input on channel 1. Channel 3 is switchable between microphone and Auxiliary input. With a 12Vdc connection for external power supply, 100V application, 48V phantom power and bass & treble control.
VOX Priority on channel 1
4 Input channels
Switchable 48V phantom power
100V application
Switchable Mic / Aux on channel 3
Peak LEDs
External 12Vdc connection
Output power:Max. 160W
Output power: RMS < 2% T.H.D 120W
Frequency response 100Hz – 12kHz ±3dB
Signal to noise ratio >75dB
Input sensitivity:Mic 1.5mV
Input sensitivity:Line 300mV
Input sensitivity:Mic 1 1.5mV
Input sensitivity:Mic 2 1.5mV
Input sensitivity:Mic 2 (unbalanced) 1.5mV
Input sensitivity:Mic 3 (unbalanced) 1.5mV
Input impedance:Mic 1.8 Ohm
Input impedance:Aux/Line 10kOhm
Outputs:Speaker 8 Ohm & 100V
Power supply 220-240Vac/50Hz
Battery 12Vdc/8A
Dimensions 482 x 88 x 282mm
Weight 10kg
